CHANGES to CNC BENDER: Push Bending

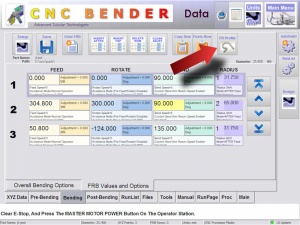

Check.jpg NEW - Push Bending Profile Setup Button

Cncbender v11 pushbend button.jpg
Cncbender v11 pbprofile close.png
This new feature allows CNC Bender to push-bend a tube through rollers to achieve very large radius bends on a bender. The new feature is controlled with the Push Bend Profile Setup menu that is accessed through the FRB page.



Push-bending is achieved using roller dies rather than clamps and pressure dies. The tube is pushed by the carriage through the rollers. The bend arm is rotated to a position that will cause the tube to form into a large radius. The more angle on the bend arm, the smaller the resulting radius. This allows standard benders to create radius values much larger than is possible with draw bending alone.



Check.jpg NEW - Push Bending Profile Table Setup Menu

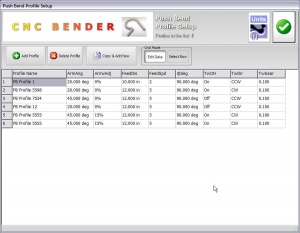

The setup is performed in this menu:

Cncbender v11 pushbend profilesetup.jpg

Each profile row contains a profile setup for a given radius. An unlimited number of profile values can be entered. Read more about how the Push Bending Profile Table works. Using this method of calculation, it is possible to calculate different Push Bends by indicating the bend angle.

Check.jpg NEW - Push Bending Profile Name Dynamic Option - Bend Options

The bend options now include a new dynamic option that will allow you choose one of the push bend profile names.

Cncbender v11 pushbend bendoptions.jpg

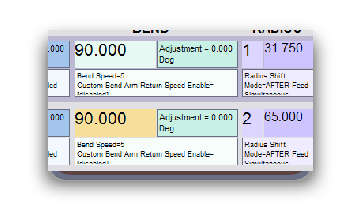

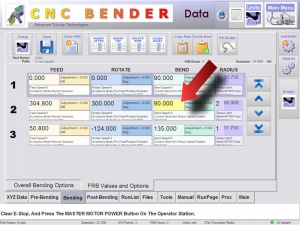

Check.jpg NEW - Push Bending Profile Enable - Color Indicator

The bend option field changes color when you select a push bend profile in the bender options.

Cncbender v11 colorcells close.png

Cncbender v11 pushbend optionfieldcolor.jpg

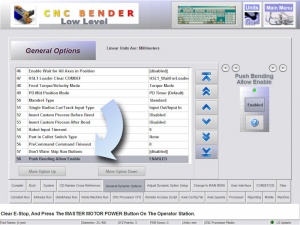

Check.jpg NEW - Push Bending Profile Enable - Low Level

The low level option is a safety feature that disables all push-bending until the feature is enabled.

Cncbender v11 pushbend lowlevel.jpg
