BendPro is a popular bender software package used by multiple bender OEMs in the industry. There are two versions commonly used: G1 and G2

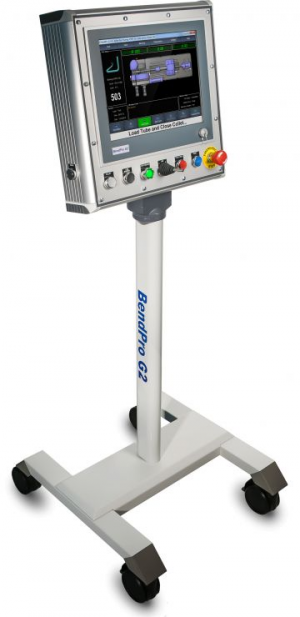

This is a BendPro G2 control on a Horn bender.




Contents


About BendPro Manual Data File Import

BendPro operators can import Supravision files directly into the part database on the control. The operator enters the FILE window, then opens a dialog and selects the Supravision file to import.

This allows our software to act as a remote programmer for bender data on a BendPro.

These are example programs that can build Supravision files:



About BendPro Measuring Center Communications

BendPro uses the Supravision Network protocol for communications. Communications are straight-forward, efficient, and very fast.

The BendPro can be setup to communicate with:



How to Check if BendPro G2 Measuring Center Communications is Possible On Your Bender Control

Utilities - Measure Machine Interface

The Supravision link is sold by Current Tech as an option that can be enabled.

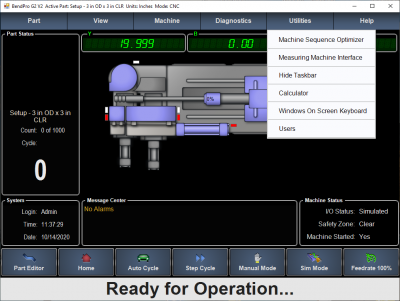

It's important to verify that this option is switched on when discovering if a BendPro G2 is ready for communication. Click on the Utilities pulldown menu...

G2V2 BenderScreen UtilitiesMeasuringCenter.png

...then click on the Measuring Machine Interface option.

Bendpro measuring machine interface menuitem.png

If the Enable Supravision Client Interface Option checkbox will allow you to check the box, then your bender has communication capability.

Bendpro supravisioninterface menu allow enableSupravisionClientInterface.png

How to Check if BendPro G1 Communications is Possible on Your Bender Control

G1 Version

Edit Part Button

Verify that this option is switched on when discovering if a BendPro G1 is ready for communication.

If you are able to open the BendPro to Supravision Link window then your software has communication capability.

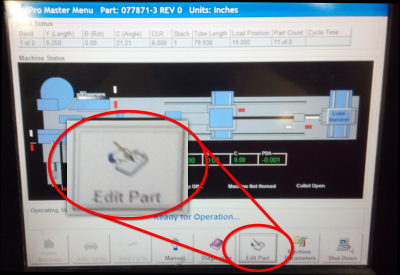

Click on Edit Part button in the main screen:

Bendpro g1 editpart.png

Measure Machine Button

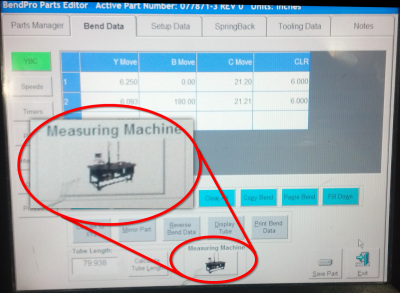

Try pressing the Measure Machine button:

Bendpro g1 measuremachine.png

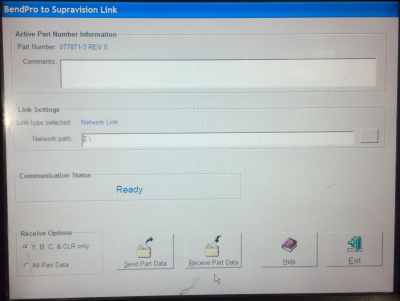

BendPro to Supravison Link Screen

If you can see this BendPro window - then you have communications capabilities on your control.

You can edit the network path for the protocol and also choose and set some communications options.

G1 supravisionscreen.png

How to Setup and Use Communications with BendPro G2

G2 Version Communications Setup

  • Enter the Utilities / Measuring Machine Settings menu.

  • Put a check in the checkbox to enable communications.

  • Setup the path that Supravision Network will use for communications.

  • Use the Machine Parameters / General Options to setup the correct bender number. If the bender number does not match the bender number used at the measuring center, then communications will not occur.

  • The G2 user interface does not need to be in the Measuring Center menu to communicate. However, that menu includes a log that displays the time of the last data transmission. If there are errors, then this is where they will be listed. So it is beneficial to change to that menu before communications.

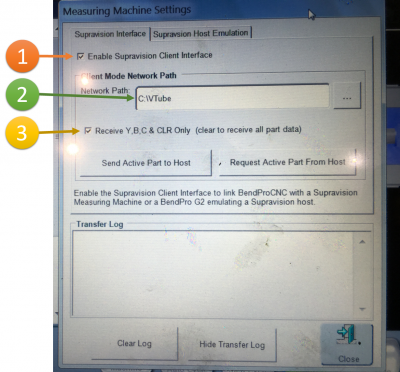

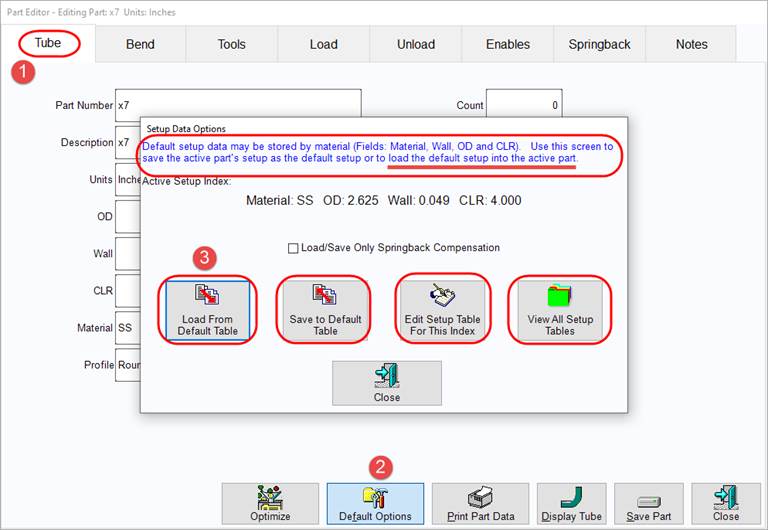

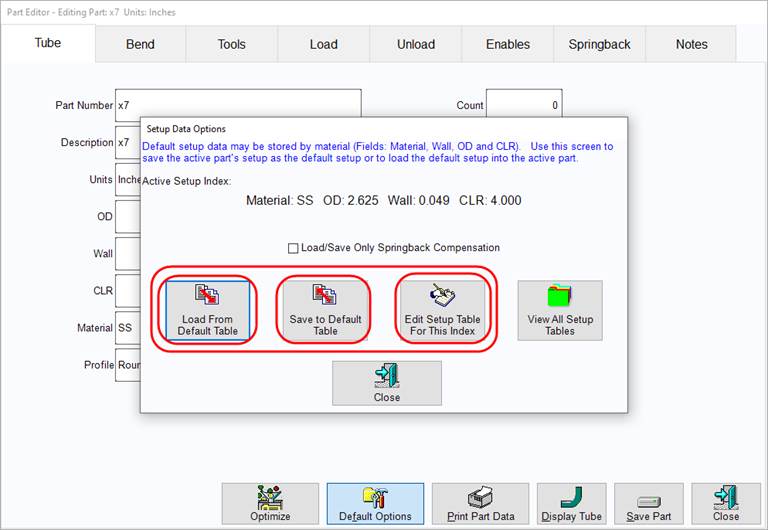

  • It is important to ENABLE the "Receive Y, B, C & CLR Only" option, or the BendPro's setup may be changed in ways that make the bender not run at all.

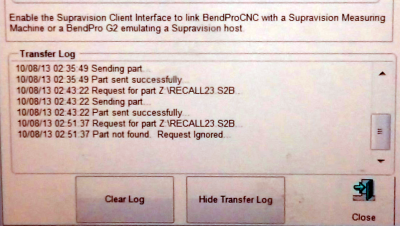

This is a closeup of the G2 log after communications:
G2V2 UtilitiesMeasuringCenter LogAfterCommunications.png

G2V2 MeasuringMachineSettings.png

Bendpro supravisioninterface menu highlighted setup.png

G2 Version - DISABLE Host Emulation

Some G2 controls have a Host Emulation tab menu.

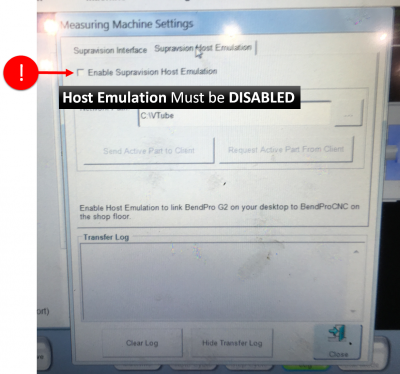

It is critical that you are sure that the host emulation mode is disabled - or standard communications will not work properly.

Host emulation mode enables BendPro to act like the measuring center side of the communication. If both Host Emulation' and Client Interface are switched on at the same time, then they interfere with each other.

G2V2 HostEmulationDisabled.png


G2 Version Communications Rules

The following rules apply for communication using the Supravision Network protocol:

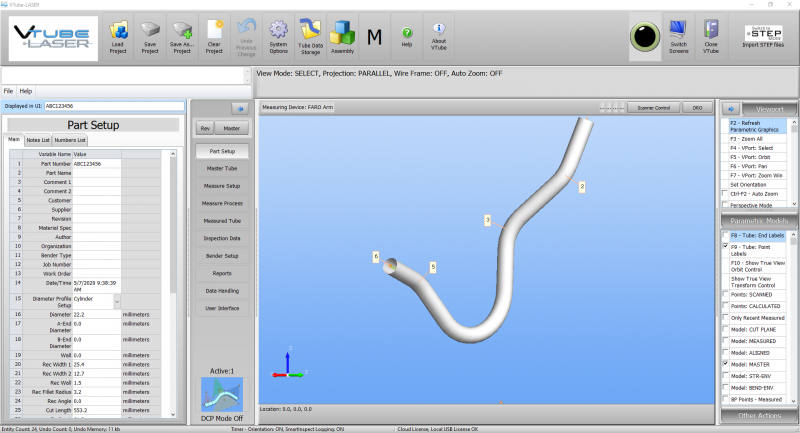

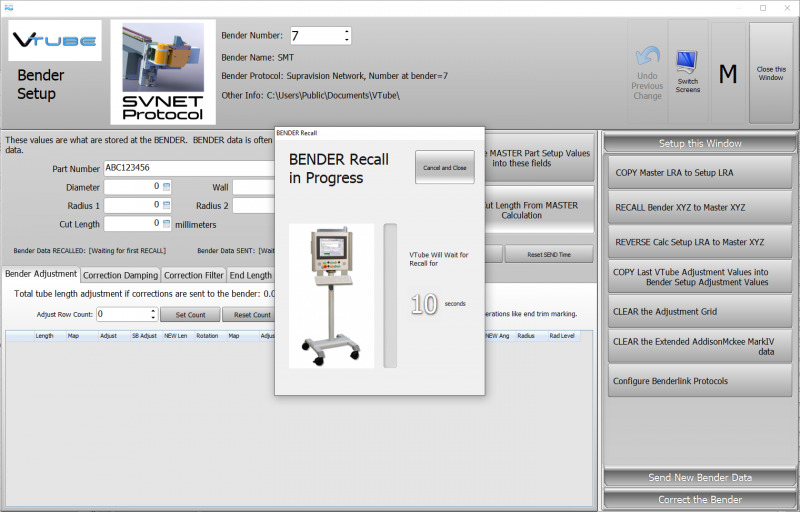

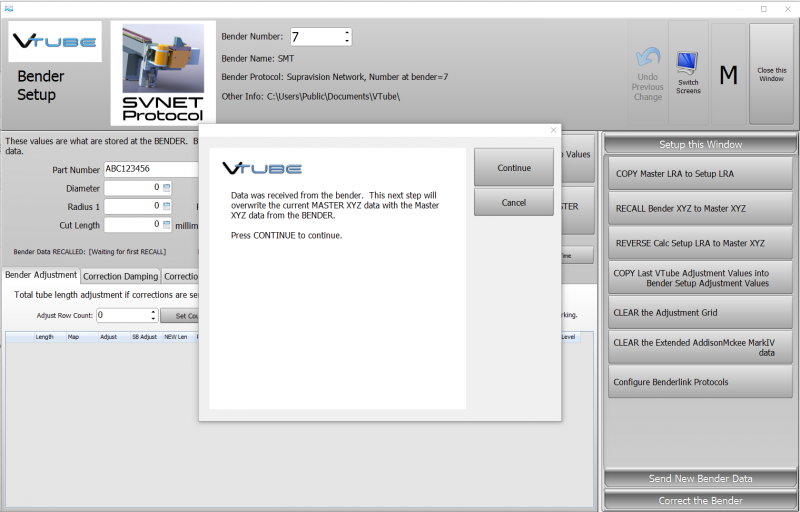

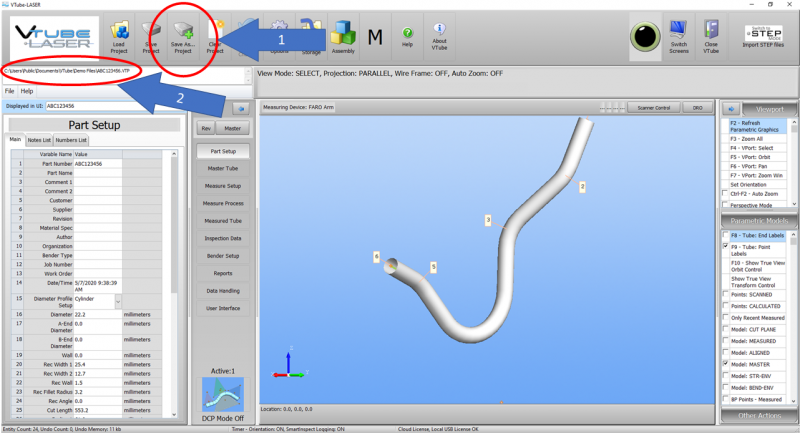

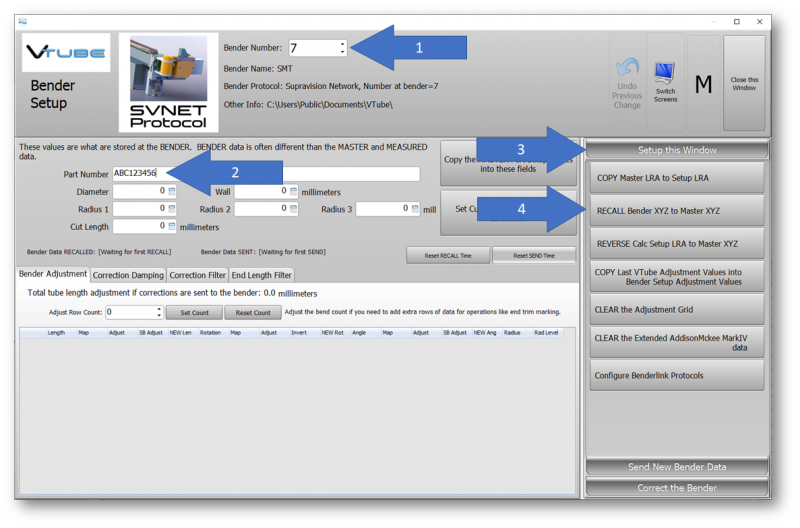

  • To RECALL data from BendPro, the measuring center must ask for the part with the correct part name - or BendPro will not answer.

  • To correct an existing part in the bender, the part must be saved in the BendPro database, and must be the active part.

  • The part number must have no spaces. The G2 controls will parse the part number so that all letters after the first space are deleted. For example:
"01234 REV0"
will be trimmed to "01234". If this new part number does not exist, then the G2 control will ask if you want to import a new part.

  • To send a NEW part to the bender, the part number must NOT already be in the database.

  • Changing the first straight length will also change the START position for the first bend. If you are using VTube-LASER to correct the bender, and don't want the first or the last straight lengths to change, then manually set the first adjustment to zero in the Bender Setup menu before sending a correction.

G2V2 MustEnterPartNumber.png



How to Setup and Use Communications on the BendPro G1

G1 Version Communications Setup

  • Starting from the main screen, press Edit Part button on the bottom of the screen.

  • Press the Measuring Machine button to enter the Supravision Network screen (see the image on the right).

  • Setup the path that Supravision Network will use for communications.

  • Use the Machine Parameters / General Options to setup the correct bender number. If the bender number does not match the bender number used at the measuring center, then communications will not occur.

G1 supravisionscreen.png

G1 Version Communications Rules

The following rules apply for communication using the Supravision Network protocol:

  • Unlike the G2 user interface, the G1 Supravision window needs to be displayed during communications. The menu includes a single line that displays if communications works.

  • Spaces are allowed in the part number - but NOT recommended. If the exact number of spaces don't match, then the communication will fail. It is difficult to differentiate between one space and two spaces, and the G1 can have spaces AFTER the part name - which is not discernable until you enter the keyboard to edit the name. Recommendation: Replace the spaces with underscores.

  • AFTER a send from the measuring center to the bender it is necessary for the operator to walk out to the bender and press the RECEIVE PART DATA button.

    For VTube-LASER SEND, there is no timeout. For Supravision or DOCS, if the timeout occurs before the operator arrives at the bender to press the button, then DOCS and Supravision will delete the data file - and the communications will fail.

    If there are errors, then this is where they will be listed.

  • To correct an existing part in the bender, the part must be saved in the BendPro database, and must be the active part.

  • To send a NEW part to the bender, the part number must NOT already be in the database.

  • Changing the first straight length will also change the START position for the first bend. If you are using VTube-LASER to correct the bender, and don't want the first or the last straight lengths to change, then manually set the first adjustment to zero in the Bender Setup menu before sending a correction.

This is the Communications Status before any communications:
G1 ComStatusReady.png

This is the Communications Status after communications are sent to the measuring center after the measuring center recalled data:
G1 ComStatusSuccessfullySent.png

The G1 control requires you to press RECEIVE PART DATA button after sending data from the measuring center.
G1 ReceivePartDataButton.png


This image shows the message after the part has been received:
G1 ComStatusSucessfullyReceived.png



General Communications Notes

Part Note Length Limitation

BendPro operators can easily type in a part note that is very long:

  • Supravsion (older software on a ROMER or MM5000 measuring center) will shutdown without warning if it receives a part note with more than 95 characters.

  • VTube-LASER can handle any part note length.

Speed and Centerline Radius Fields Observed

  • BendPro returns the YBC axis SPEEDS in the Supravision data transfer. This data should be observed and returned from any Benderlink system - or the speeds may be reset to a new value during the next correction. For this reason, it is a good idea to always perform a RECALL before SENDING data corrections to a BendPro control.

  • BendPro will use the incoming Ceterline Radius values in the Supravision transmission (rather than the values in the tool page). This data should be observed and returned from any Benderlink system - or the radii may be reset to the new incoming vale during the next correction. For this reason, it is a good idea to always perform a RECALL before SENDING data corrections to a BendPro control.

Non-Bending YBC Row Avoidance Moves

BendPro operators will sometimes use non-bending rows in the YBC data to enable special avoidance moves.

  • Supravision and DOCs cannot handle data with avoidance moves inserted in the YBC data. It is necessary to make manual corrections in these cases.

  • VTube-LASER uses a data mapping feature to allow for any number of non-bending rows.

Handling Inverted Rotations

  • DOCs software will sometimes invert rotations (to move in the opposite direction) - especially when making rotation corrections around the 180 degree area. Be aware of this and be prepared to reset any rotation that is moving in the wrong direction.

  • Supravision observes and maintains the rotation direction found at the bender.

  • VTube-LASER allows operators to check an Invert checkbox to invert any rotation corrected to the opposite direction. Operators of VTube should observe any rotation that is close to 180 degrees to check for the possibility for the need for inversion. This gives operators complete control over the rotation direction during correction.
