Cable Spec 35
From ATTWiki
Contents |
Cable Pinout
|

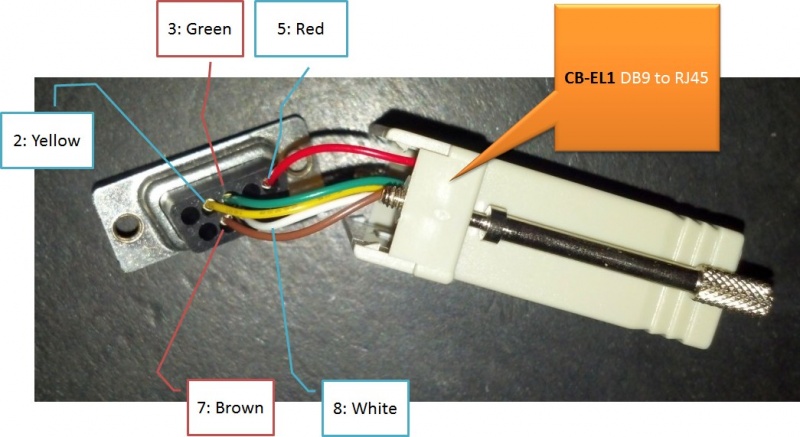

This is the wiring schematic for the RJ45 to DB9 female adapter for the CB-EL1 RS232D port on the board. |
|
<be>

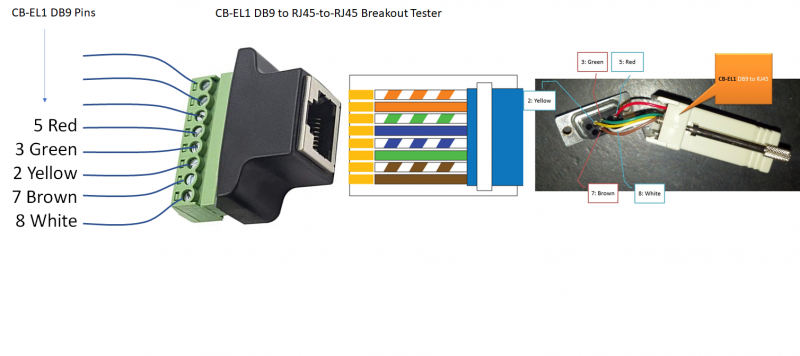

Breakout Tester for Cable 35
Use a breakout tester for continuity checks like this:

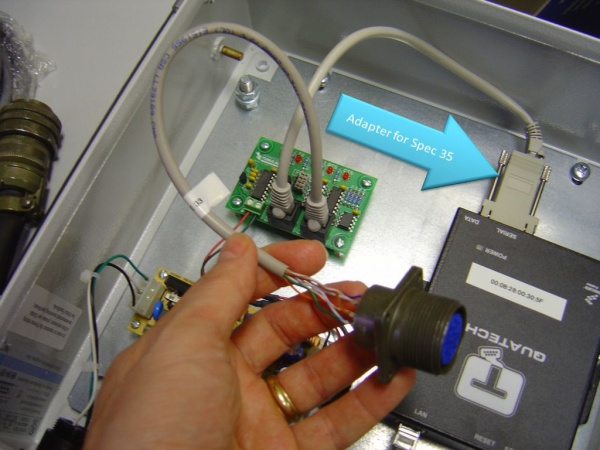

In the Box
|
This is an image of an RJ45 to DB9 adapter with the above wiring inside the benderlink ethernet module. The DB9 port is female to attach to a standard PC male port. |
|
|
