Revision as of 22:10, 12 June 2017

Vtube-step logo 2.png

Revision 2.8.3

Original Release Date: June 12, 2017
Latest Build: 89

Vtube-step-1.87 screenimage.png



Contents


Check.jpg Build 89 - ENHANCED: DRO DISPLAY MOVED SLIGHTLY LEFT

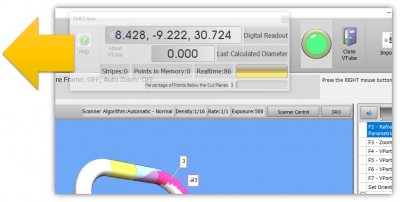

We observed users clicking on the arm connection LED, then dragging the DRO slightly left off of the LED after connection was made.

This now happens automatically that users don't have to drag the DRO left.

Vtube-laser v2.8.3 build89 dro drag left.png




Check.jpg Build 88 - FIXED: REPORT WINDOW DISPLAY

The Report Window did not always display on top of the main VTube windows in build 87.

This was fixed in build 88.

Vtube-laser v2.8.3 build89 reportdisplay.png



Check.jpg ENHANCED: NUMALLIANCE BENDER OUTPUT HANDLES 180-DEGREE BENDS

OUTPUTS 180-DEGREE BENDS

  • The NUMALLIANCE CSV export now compresses SPLIT BENDS into a single 180-degree bends during export to the NUMALLIANCE CSV.

OUTPUTS SPRINGBACK-COMPENSATED DATA

  • The NUMALLIANCE CSV export now includes springback-compenstation if you choose that option during export.

Vtube-step v2.8.2 numalliance split bend.png



Check.jpg ENHANCED: SUPRAVISION IMPORT HANDLES DATA WITH NO CENTERLINE XYZ POINTS

VTube requires XYZ coordinates for the parametric tube data.

However, some Supravision files contain only bender data with no centerline XYZ data.

VTube now detects this situation and automatically reverse-calculates to create a new set of XYZ data when necessary.

Vtube-step v2.8.3 SV Import Button.png




Check.jpg ENHANCED: DOCS IMPORT SETS THE PART NUMBER to the INCOMING FILENAME

Previous versions of VTube would use the actual DOCS part number of "Part 1", "Part 2", etc., in the VTube Part Number.

A customer that imports DOCS files into VTube requested that the VTube Part Number be set to the incoming filename.

We made this change in this version.

Romer docs egrtube.jpg





Check.jpg FIX: UNEXPECTED MODEL DELETION ISSUE RESOLVED

VTube could randomly delete the imported model, the collected, or the constructed features after a parametric data build.

This has been fixed.

Vtube-step v2.8.3 unbent components.png
