Difference between revisions of "How to Switch the OD Mesh On/Off"

From ATTWiki
Jump to: navigation, search

(→‎Pulldown menus)
Line 2: Line 2:

__TOC__

__TOC__

−
== Pulldown menus==
+
== Using the Primary View 3D Menu==

−
<table>
+
[[image:tcadpro_3d_straightwires_off.jpg|400px]]
−
<tr>
+
−
<td width="200">
+
−
Use the pulldown menus
+
−
</td>
+
−
<td>
+
−
[[image:autocad_2010.jpg|200px]]
+
−
</td>
+
−
</tr>
+
−
</table>
+


<table>

<table>

<tr>

<tr>

<td width="200">

<td width="200">
−
Use the Unigraphics NX DXF building capability to create parts for TubeCAD Pro.
+
Switch the mesh off in the straights by using the Primary Views>3D>Straights wire>On/Off

</td>

</td>

<td>

<td>
−
[[image:unigraphics_nx.jpg|200px]]


</td>

</td>

</tr>

</tr>

Revision as of 14:34, 8 September 2012

Tcadpro logo.jpg

Contents


Using the Primary View 3D Menu

Tcadpro 3d straightwires off.jpg

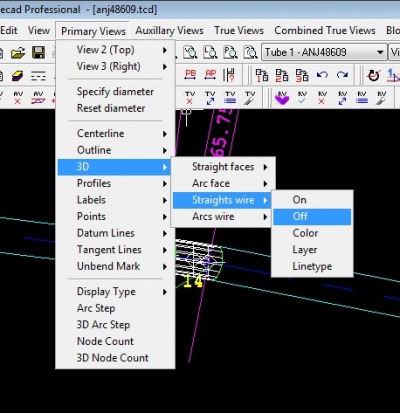

Switch the mesh off in the straights by using the Primary Views>3D>Straights wire>On/Off

Step 1: Export the Drawing as a DXF from the General CAD Package

Design the tube in general CAD package. This is an image of the DWGeditor program from SolidWorks. It is based on the CADopia software package.

If you receive DXF files from customers, then it is appropriate to use a general CAD program like CADopia to check that the file is setup properly:

  • The tube centerline needs to be placed on a unique layer.
  • The tube arc centerlines should be placed on another unique layer.
  • There should be no extraneous entities (lines or arcs) on those layers.



If you have made changes, then after the drawing meets these qualifications, export the drawing to a new DXF file that can be imported to TubeCAD Pro.

Dwgeditor tube.jpg


Step 2: Load TubeCAD Pro and Initialize the Units

  • Load TubeCAD Pro.
  • If your incoming part was drawn in inches, then press the New Part in Inches button. (This is the button with the blue ball.)
  • If your incoming part was drawn in millimeters, then press the New Part in Millimeters button. (This is the button with the red ball.)

Tcadpro dxfimport1.jpg

Step 3: Start the DXF File Import Feature

In the File pulldown menu, select the Import - DXF File command. Select the DXF file to import then press OK.

  • Select DXF file.
  • Select the centerline layer name and the centerline arc layer name
  • Press "Load File"

Tcadpro dxfimport3.jpg



Step 4: Organize the Layout

The display will change. It may look something like this. If you see nothing, then press the Zoom Extents feature.

  • Type the word "auto" in the command line and press the Enter key.
  • Enter "4" and press Enter. This selects the most comprehensive formatting available for TubeCAD Pro layouts.
  • The layout will reorganize itself like this:

Tcadpro dxfimport4.jpg

Tcadpro dxfimport5.jpg

Step 5: Set the Diameter

The incoming data will not contain a diameter, so you can set that value in the General Spec menu.

  • Either press the GS button or type "spec" and press Enter.
  • Enter the diameter in the Outer Diameter field
  • Press the "Reset View Diameters" button.
  • Press the OK button at the bottom of the window

Tcadpro dxfimport6.jpg

The image will display something like this:

Tcadpro dxfimport7.jpg

Step 6: Zoom Extents

Zoom to the extents to see the entire layout.

This entire process takes just a few minutes.

Tcadpro dxfimport8.jpg
