CNC Bender v10-20071003

CHANGES to CNC BENDER

Automatic Cross Check for Module Configuration Files

CNC Bender cannot operate properly if the module configuration files are setup improperly. CNC Bender now performs a module configuration cross check diagnostic every time it starts.

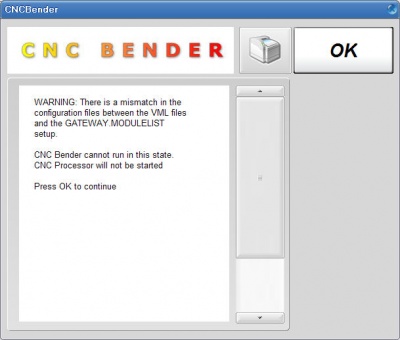

If the configuration files are not perfectly matched, then you will see this warning:

Update to File Load User Window

The File Load menu User Interface adjusted slightly in order to be more consistent with other CNC Bender menus.

ORIGINAL:

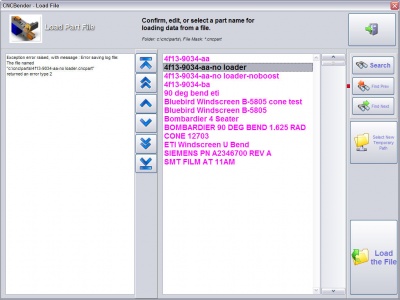

NEW this VERSION

CHANGES to CNC PROCESSOR

CNC Processor is the program that directly controls the bender actuators.

Disallow Jog Queuing When in Cycle Hold Mode

CNC Bender no longer allows an operator to jog any axis or actuator if the Cycle Hold button is pressed. This mode is slightly different than Safe Mode Cycle Hold, where the safety scanner area is entered. When the safety scanner or mat is activated, the machine changes to a near Zero Energy State state.

Cycle Hold without stepping on the mat or safety scanner acts as a pause button without changing the bender into safe mode.

SAFETY NOTE Do not work in a bending machine when it is in regular Cycle Hold mode! In regular Cycle Hold, the bender pauses, but all axes stay energized. If the machine is power on and not in Safe Mode Cycle Hold, then it is critical to keep hands out of the working area of the machine. Always press the E-stop before working on the machine.

Reduced CPU Usage When Idle

CNC Processor required expanded CPU usage when the bender was powered down or in manual mode. This had an effect of slowing the CNC Bender user interface.

Starting with this version, CNC Processor automatically reduces the load on the CPU when in either of these modes.

How to UPGRADE

CNC Bender User Interface for ProControl

If your operator station contains one of the versions listed below, then they can be upgraded through simple self-installation:

• CNC Bender v10-20070928
• CNC Bender v10-20070920
• CNC Bender v10-20070726b
• CNC Bender v10-20070803
• CNC Bender v10-20070828
• CNC Bender v10-20070914

See our CNC Bender Upgrade Policy page for details regarding the charges for the upgrade software.

Download the setup file by clicking on this link.
This setup file requires a password to run. Please contact John Esralian for upgrade prices and password information.

For instructions on how to install the file see: How to Install a CNC Bender Upgrade
