During Feed-Bending it is possible to experience a Feed Axis Fault that is most often caused by one of two issues:

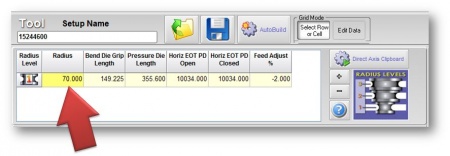

TOOL PAGE: The Centerline Radius values do not to match the bend die radii on the bender.

Cncbender toolpage radius.jpg

  1. TOOL PAGE: The Feed Axis Adjust % is not set to the proper value in the Tool page.


If the Feed Axis faults especially on large angle bends, then one or both of these are probably an issue.
