Revision as of 03:23, 5 October 2012

Vtube-step logo.jpg

Revision 1.78

Vtube-step 1.77.4.jpg




Check.jpg NEW: Import Tube XYZ Centerline from Excel File

  • Import Excel XYZ coordinates and radii from Excel file.
  • The radius value can be included or skipped.
  • The diameter can be entered before the tube is extracted.
  • The feature can be entered from the Import / Export menu, or through the XYZ popup menu.

Vtubestep importtubexyz excel beforeimport.jpg

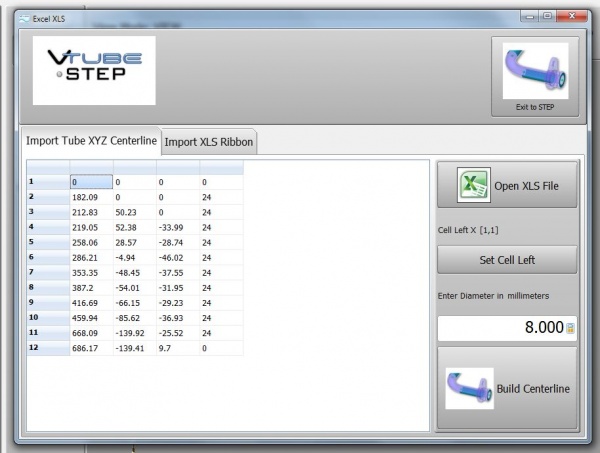

Vtubestep importtubexyz excel.jpg

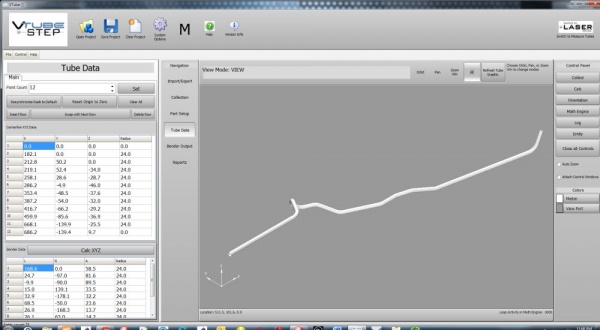

Vtubestep importtubexyz excel result.jpg

Vtubestep importtubexyz excel popup.jpg

Check.jpg NEW: Built-in Overbend Calculator

The Overbend Calculator is new to STEP. Press the Overbend Calculator button at the bottom of the Part Setup screen to automatically calculate the fixed and proportional springback values.

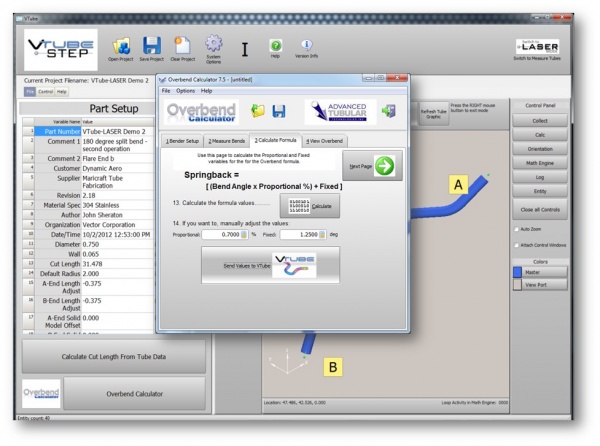

Vtube-step v1.78 buildin overbend.jpg

Check.jpg ENHANCED: Export Bender Data with Springback Values

Text coming here
