VTube-LASER v2.9.3

From ATTWiki
Jump to: navigation, search

Vtube-laser logo 1.96.png


Revision 2.9.3

Release Date: January 10, 2017


Vtube-laser v2.7 screenshot.png




Check.jpgNEW - NUMALLIANCE CORRECTIONS ADDED

VTube-LASER now has an export option for NUMALLIANCE CSV files that is used to correct the NUMALLIANCE benders.

Note: NUMALLIANCE benders only require the measured data for corrections.

Measure the tube in VTube-LASER, then send the MEASURED tube data to the bender control, and it will then perform the correction.

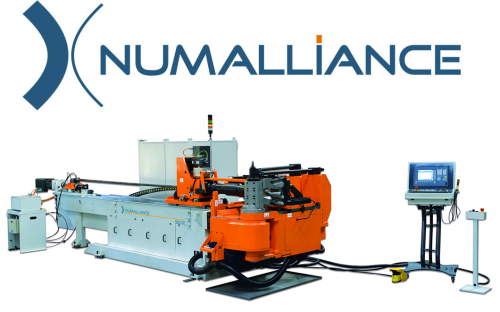

Numalliance Splash.png

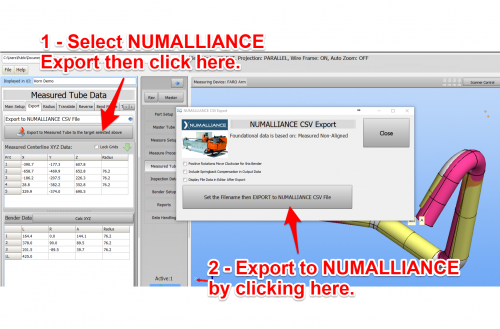

VTube-LASER Correcting a NUMALLIANCE Bender.png



Check.jpgNEW - REDESIGNED TUBE EXPORT MENU for QUICK EXPORT with NUMALLIANCE EXPORT ADDED

We redesigned the FILE menu for the MASTER, MEASURED, and MEASURED ALIGNED menus. Now it is referred to as EXPORT.

The new menu has a drop-down box that allows for easier access to export choices.

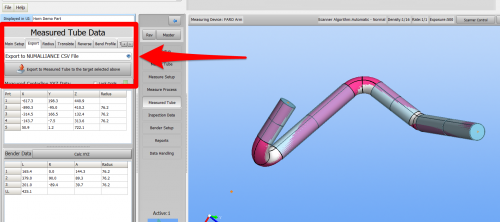

Vtube-laser v2.9.3 exportmenu2.png

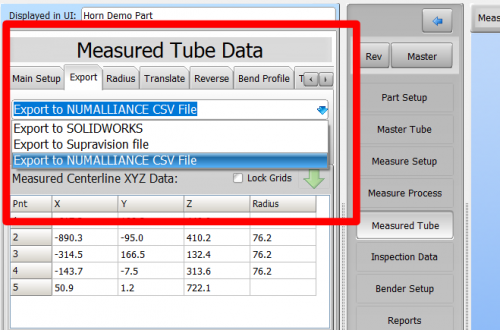

Vtube-laser v2.9.3 exportmenu.png



Check.jpgNEW - Diameter Cut Plane - Maximum Cloud Radius ZERO Warning

VTube-LASER will take in only one point per laser stripe if the Maximum Cloud Radius value is accidentally zero to ZERO and the DCP is set to ACTIVE.

Therefore, a new warning displays when you start a new measure and the value is set to ZERO with DCP active.

VTube-LASER also opens the Cut Plane Setup Control window so that you can adjust the value.

The only way to measure with the DCP Maximum Cloud Radius value set to zero is to set the DCP to INACTIVE.

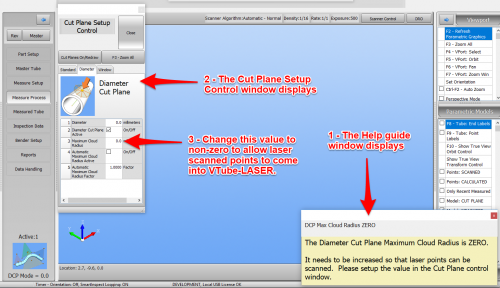

DCP Max Cloud Radius Zero Warning.png



Check.jpgNEW - DENGLER Bender Corrections Support ADDED

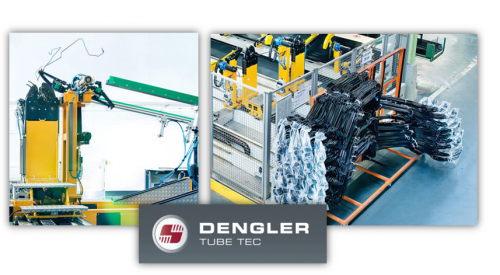

Dengler benders are known for bending long brake and fuel lines.

This new communications protocol quickly adjusts the DENGLER MES bender files directly that can then be loaded into the DENGLER controls.

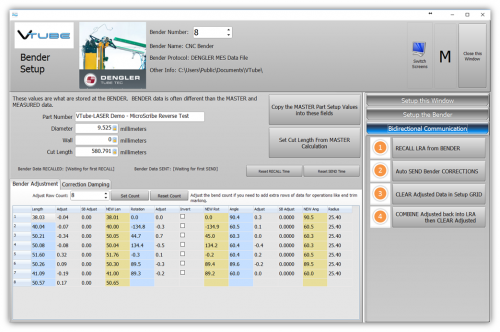

Dengler in bender setup.png



Check.jpgNEW - Support for MicroScribe Arms from Revware

VTube-LASER now supports the MicroScribe arms using ball probes.

These arms are smaller and have fewer axes than regular laser scanning arms from HEXAGON or FARO, and are therefore less expensive. A VTube-LASER + MicroScribe Arm system costs only $21000 ($26000 with on-site training).

The arm that we developed the link with is a MicroScribe i arm (shown on the right). You can view a PDF brochure here: MicroScribe i Brochure

This arm has a two-foot reach (four-foot total volume) with an accuracy of +/- 0.005" (127 microns).

Revware has arms that are accurate to +/-0.002" (51 microns). They also sell a slightly longer arm with higher accuracy than the "i" arm shown here.

Vtl screen with microscribe arm.png



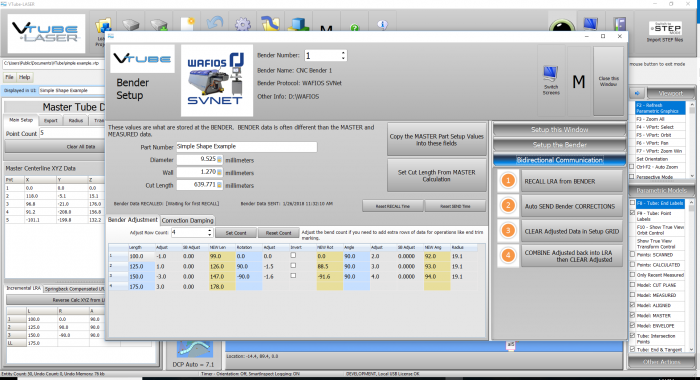

Check.jpgNEW - GUIDE WINDOWS IN BENDER SETUP ADDED

We've put Guide Windows in the Bender Setup menu. They can stay open for as long you as you want - or close them anytime. They are less obtrusive than the dialogs that required the operator to press "OK" to continue.

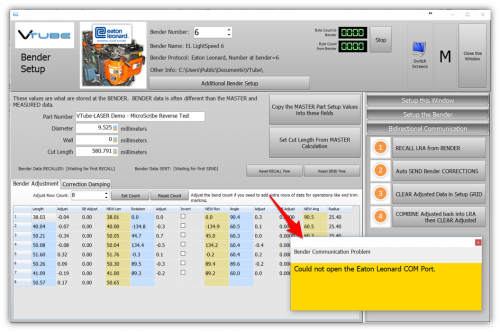

Vtl 2.9.3 bender setup guide windows.png
